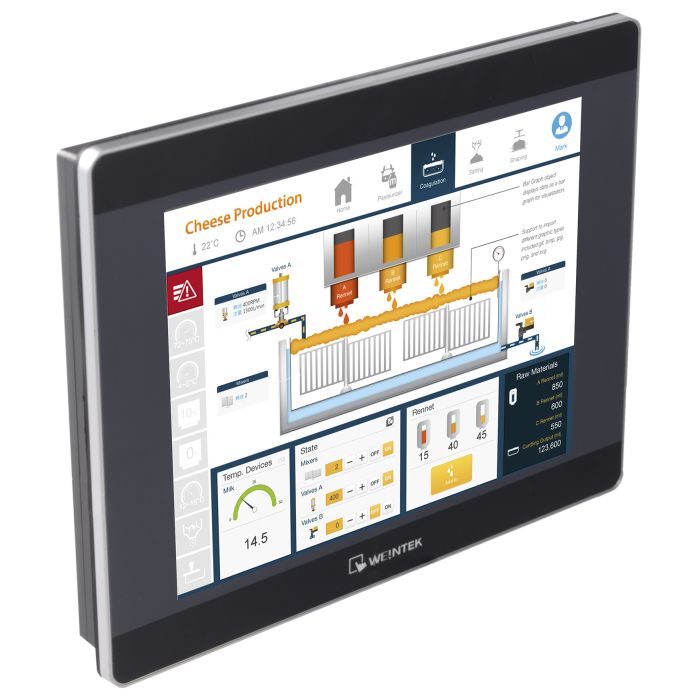

MT8092XE

9.7î TFT colour graphic Touchscreen HMI plus CANbus port & Dual Ethernet.

SKU: MT8092XE
Stock Availability: Retired Product

Retired Product, please consider the cMT3092X as a possible replacement model

9.7" 1024 x 768 TFT LCD, LED Backlight, Fan-less, 512 MB Flash Memory, 1 X USB Host Port, COM2 & COM3 RS-485 2W support MPI 187.5K, CANbus port and Dual Ethernet 10/100/1000Base-T

Stock Availability

Retired Product

Product Documents

  XE Series Brochure
  MT8092XE Datasheet
  MT8092XE Installation Instructions

Product Spec

Model	MT8092XE
Display	9.7” TFT
Resolution	1024 x 768
Brightness (cd/ ㎡ )	350
Contrast Ratio	500:1
Backlight Type	LED
Backlight Life Time	>30,000 hrs.
Colours	262K
LCD Viewing Angle (T/B/L/R)	60/70/70/70
Type	4-wire Resistive Type
Accuracy	Active Area Length(X)±2%, Width(Y)±2%
Flash	512 MB
RAM	256 MB
Processor	32 bits RISC Cortex-A8 1GHz
SD Card Slot	N/A
USB Host	USB 2.0 x 1
USB Client	N/A
Ethernet	10/100/1000 Base-T x 2
COM Port	Con.A: COM2 RS-485 2W/4W, COM3 RS-485 2W Con.B: COM1 RS-232, COM3 RS-232*
RS-485 Dual Isolation	N/A
CAN Bus	Yes
RTC	Built-in
Input Power	24±20%VDC
Power Isolation	Built-in
Power Consumption	650mA@24VDC
Voltage Resistance	500VAC (1 min.)
Isolation Resistance	Exceed 50MW at 500VDC
Vibration Endurance	10 to 25Hz (X, Y, Z direction 2G 30 minutes)
PCB Coating	Yes
Enclosure	Plastic
Dimensions WxHxD	260.6 x 203.1 x 36.5 mm
Panel Cutout	250 x 192 mm
Weight	Approx. 0.85 kg
Mount	Panel mount, VESA mount 75 x 75 mm
Protection Structure	UL Type 4X (indoor use only) / NEMA4 / IP65 Compliant Front Panel
Storage Temperature	-20° ~ 60°C (-4° ~ 140°F)
Operating Temperature	0° ~ 50°C (32° ~ 122°F)
Relative Humidity	10% ~ 90% (non-condensing)
CE	CE marked
ATEX	ATEX Zone 2/22 Category 3 G/D
UL	cULus Listed
Software	EasyBuilder Pro Built-in Easy Access 2.0
*Only Tx & Rx (no RTS/CTS) may be used for COM1 RS-232 when COM3 RS-232 is also used.
