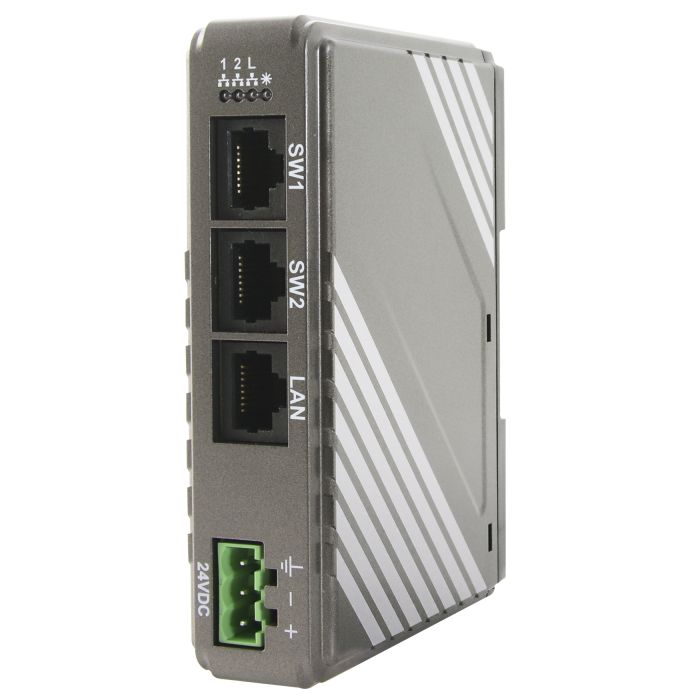

IIoT Gateway with Ethernet Bridge with built-in Ethernet switch, Supports OPC UA and MQTT, Compact Design and DIN-rail Mountable, Fan-less, 256 MB Flash Memory, Built-in Power Isolator, Wide input voltage range: 10.5~28VDC
Manual Quantity Amount
Stocked in UK, up to 3-4 week delivery if Out of Stock
Product Documents
Product Spec
Model | cMT-G04 |
Flash | 256 MB |
RAM | 256 MB |
Processor | ARM RISC 528MHz |
Ethernet | LAN:10/100 Base-T x1 SW1, SW2:10/100 Base-T x1 (2 port Ethernet switch) |
WiFi | N/A |
RTC | Built-in |
Input Power | 10.5~28VDC |
Power Isolation | Built-in |
Power Consumption | 270mA@12VDC;150mA@24VDC |
Voltage Resistance | 500VAC (1 min.) |
Isolation Resistance | Exceed 50MW at 500VDC |
Vibration Endurance | 10 to 25Hz (X, Y, Z direction 2G 30 minutes) |
PCB Coating | Yes |
Enclosure | Plastic |
Dimensions WxHxD | 109 x 81 x 27 mm |
Weight | Approx. 0.14 kg |
Mount | 35 mm DIN rail mounting |
Protection Structure | IP20 |
Storage Temperature | -20° ~ 60°C (-4° ~ 140°F) |
Operating Temperature | 0° ~ 50°C (32° ~ 122°F) |
Relative Humidity | 10% ~ 90% (non-condensing) |
CE | CE marked |
UL | N/A |
Software | EasyBuilder Pro V6.01.02 or later versions |
Weight (kg)
0.1800
Country of Origin
Taiwan
HS Code
85312040
Brand
-- Please Select --
Drawings
3D CAD file specifically for this item. |
|
3D CAD file specifically for this item. |
3D CAD file specifically for this item. |
|
3D CAD file specifically for this item. |
