1251E-6504

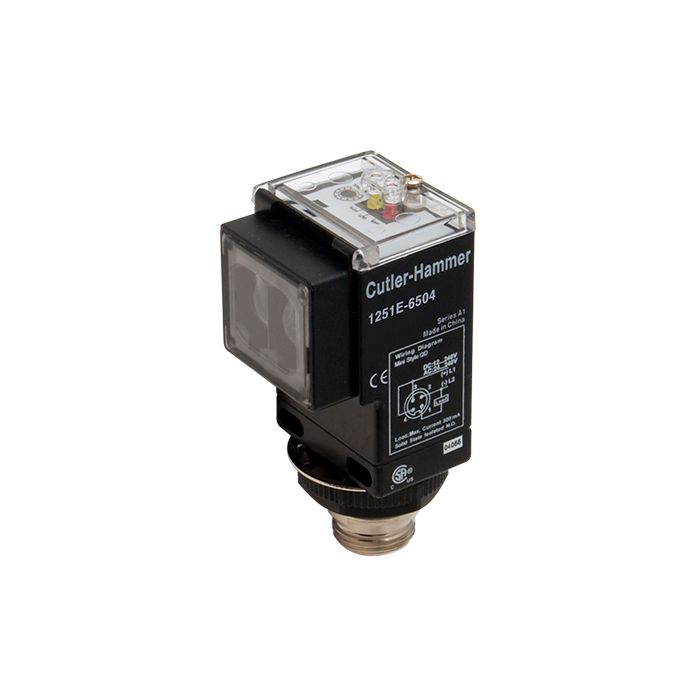

Eaton photoelectric sensor, rectangular, plastic housing, through-beam receiver, 500 ft sensing distance, selectable light-on/dark-on, SPDT EM relay, 12-240 VDC / 24-240 VAC, 4-wire, 5-pin mini connector and 7/8in - 16UNF thread.
- SKU
- 1251E-6504
- Stock Availability
- 5-10 working day delivery, contact us for availability
£196.00
Photoelectric sensor (photo eye), rectangular, 73 x 46 x 48.5 mm, 30 mm threaded mounting base, IP67, plastic housing, through-beam receiver, 12-240 VDC / 24-240 VAC, 5-wire, SPDT electromagnetic relay, 500 ft. sensing distance, adjustable, selectable Light-on / Dark-on, 66Hz switching frequency, 5-pin mini connector, 7/8 inch - 16UN thread. Purchase cable separately. Mounting nut included.
| Stock Availability | 5-10 working day delivery, contact us for availability |
|---|---|
| Product Documents | |
| Weight (kg) | 0.182000 |
| Country of Origin | China |
| HS Code | 8541.40.80 |
1251E-6504 Technical Spec
