DL24-00

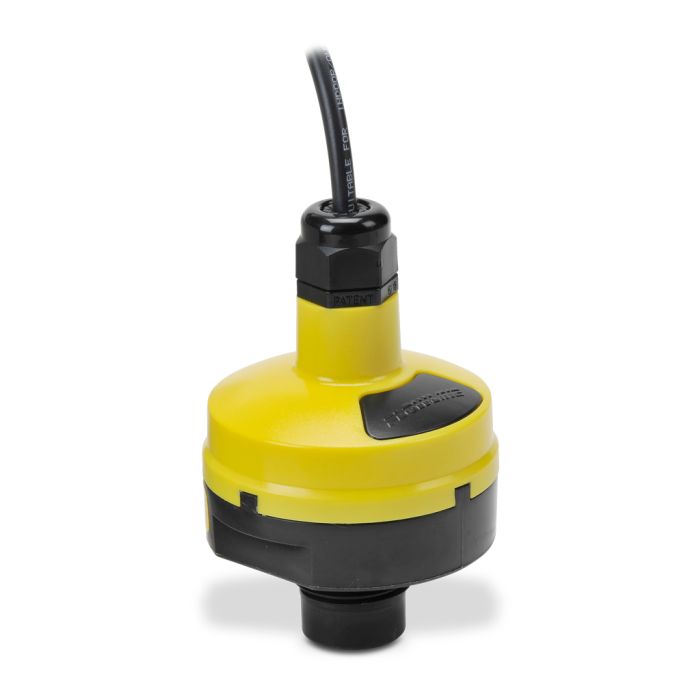

Flowline EchoPod ultrasonic liquid level sensor, 9.8 feet range, 4-20 mA output, four SPST relays, 14-28 VDC, 1 inch NPT male, mounting gasket, 48-inch cable.
- SKU
- DL24-00
- Stock Availability
- 5-10 working day delivery, contact us for availability
£731.00
Flowline EchoPod ultrasonic liquid level sensor, continuous level measurement up to 9.8 feet (3m) sensing range with 4-20 mA analog output, four programmable SPST relays, powered by 14-28 VDC, NEMA 6P rated housing, 1 inch NPT male process connection, mounting gasket, 48-inch (1.2m) integral 9-conductor shielded cable. An LI99-1001 Fob USB adapter (purchased separately) and WEBCAL software (free download from the AutomationDirect Web site) are required for sensor configuration and firmware updates.
| Stock Availability | 5-10 working day delivery, contact us for availability |
|---|---|
| Brand | Automation Direct |
| Product Documents | |
| Weight (kg) | 0.409000 |
| Country of Origin | United States |
| HS Code | 9026.10.20 |
| Compliance Information | Agency Compliance & CertificationsUL Listed File #: None
UL Recognized File #: None
UL Hazardous File #: None
 CSA File #: None
 RoHS Status: Yes (See CE Doc)
Other: None
|
DL24-00 Technical Spec
Agency Compliance & Certifications
UL Listed File #: None
UL Recognized File #: None
UL Hazardous File #: None
CSA File #: None
RoHS Status: Yes (See CE Doc)
Other: None
