XTH-0-UNV

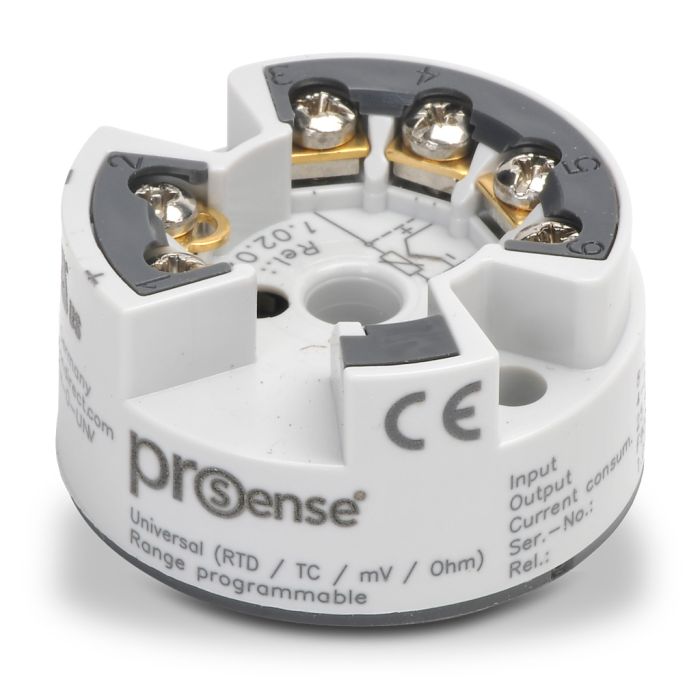

ProSense universal programmable temperature transmitter, RTD or thermocouple input, 4-20 mA output, programmable range, 8 to 35 VDC, connection head mount.
- SKU
- XTH-0-UNV
- Stock Availability
- Discontinued
Discontinued item. No direct replacement available.
ProSense universal programmable temperature transmitter, input accepts RTD (2, 3, 4-wire, Pt50, Pt100, Pt500, Pt1000, Ni100, Ni500, Ni1000, Cu50, Cu100), thermocouple with internal or external cold junction compensation (Type J, K, T, E, R, S, B, N, C, D, L, U), -10 to 100mV, or 10 to 2000 ohm potentiometer, linear 2-wire 4-20 mA or 20-4 mA analog output, programmable temperature range in deg. F or deg. C, 2kV isolation, 8 to 35 VDC loop powered, DIN Form B sensor connection head mount (hockey puck style), mounting screws included. An XT-USB programming cable (purchased separately) and XT-SOFT software (free download from the AutomationDirect Web site) are required for transmitter configuration.
| Stock Availability | Discontinued |
|---|---|
| Brand | Automation Direct |
| Product Documents | |
| Weight (kg) | 0.091000 |
| Country of Origin | Germany |
| HS Code | 9032.89.60 |
XTH-0-UNV Technical Spec
