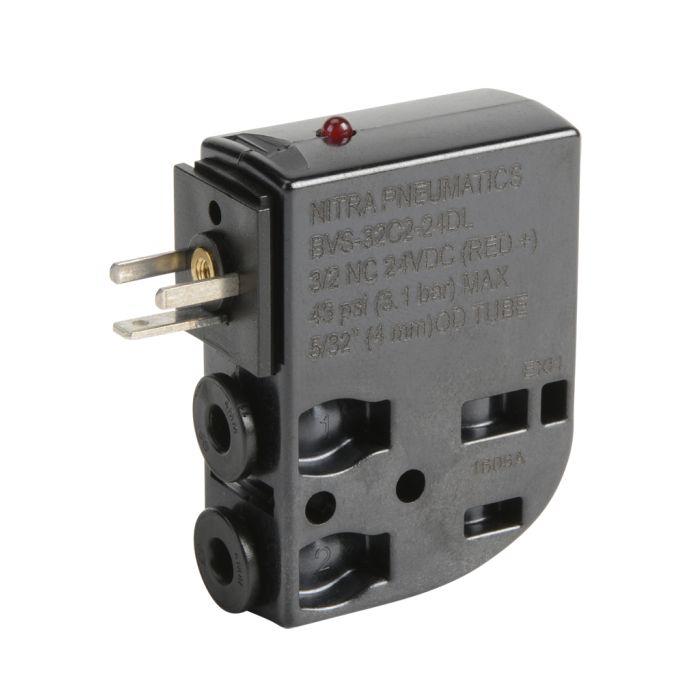

BVS-32C2-24DL
NITRA solenoid valve, 3-port (3-way), 2-position, N.C., single solenoid spring return, (1) 5/32in (4mm) PTC tubing inlet(s), (1) 5/32in (4mm) PTC tubing outlet(s), (1) vent hole exhaust(s), Cv=0.02, 24 VDC, 0.5W, 8mm DIN style wiring plug.
- SKU
- BVS-32C2-24DL
- Stock Availability
- Discontinued
Discontinued item.
NITRA pneumatic directional control solenoid valve, 3-port (3-way), 2-position, N.C., spool, single solenoid spring return, fiberglass-reinforced thermoplastic body, (1) 5/32in (4mm) push-to-connect tubing inlet port(s), (1) 5/32in (4mm) push-to-connect tubing outlet port(s), (1) vent hole exhaust port(s), Cv=0.02, 24 VDC, 0.5W, 8mm DIN style wiring plug, LED indication.
| Stock Availability | Discontinued |
|---|---|
| Brand | Automation Direct |
| Product Documents | |
| Weight (kg) | 0.045000 |
| Country of Origin | United States |
| HS Code | 8481.20.00 |
BVS-32C2-24DL Technical Spec
