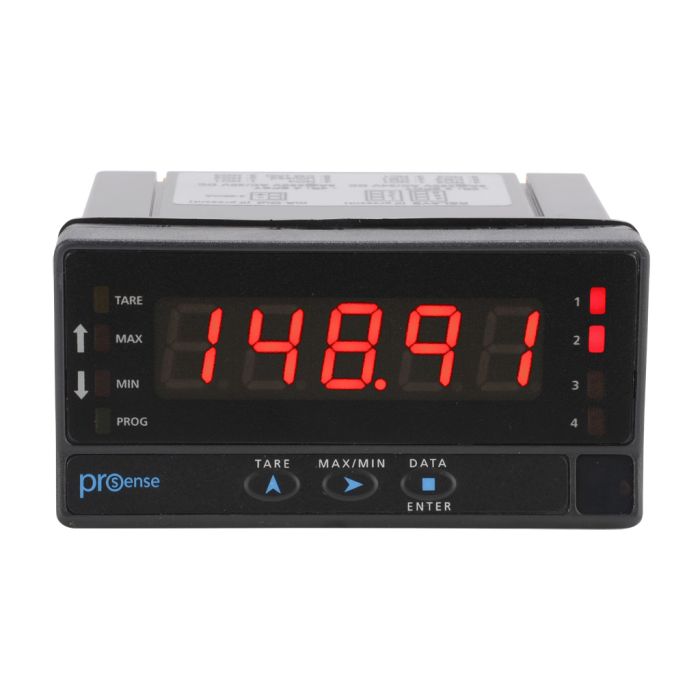

DPM3-AT-A2R-L
ProSense digital panel meter, 1/8 DIN, 5-digit tri-color (red, green, amber) LED, analog, RTD, thermocouple input, 4-20 mA, (2) 8A SPDT relays output, 22 to 53 VAC / 10.5 to 70 VDC operating voltage.
- SKU
- DPM3-AT-A2R-L
- Stock Availability
- 5-10 working day delivery, contact us for availability
£279.00
ProSense digital panel meter, 1/8 DIN, 5-digit tri-color (red, green, amber) LED, input current signal range(s) of +/- 20 mA, input voltage signal range(s) of +/- 10 VDC, +/- 150 mVDC, +/- 30 mVDC, +/- 15 mVDC, input thermocouple type(s): J, K, T, N, input RTD type(s): Pt100, output current signal range(s) of 4 - 20 mA, (2) Form C (SPDT) relay(s), 8A @ 250 VAC, 8A @ 24 VDC, 22 to 53 VAC / 10.5 to 70 VDC operating voltage.
| Stock Availability | 5-10 working day delivery, contact us for availability |
|---|---|
| Product Documents | |
| Weight (kg) | 0.318000 |
| Country of Origin | Spain |
| HS Code | 9030.33.00 |
DPM3-AT-A2R-L Technical Spec
