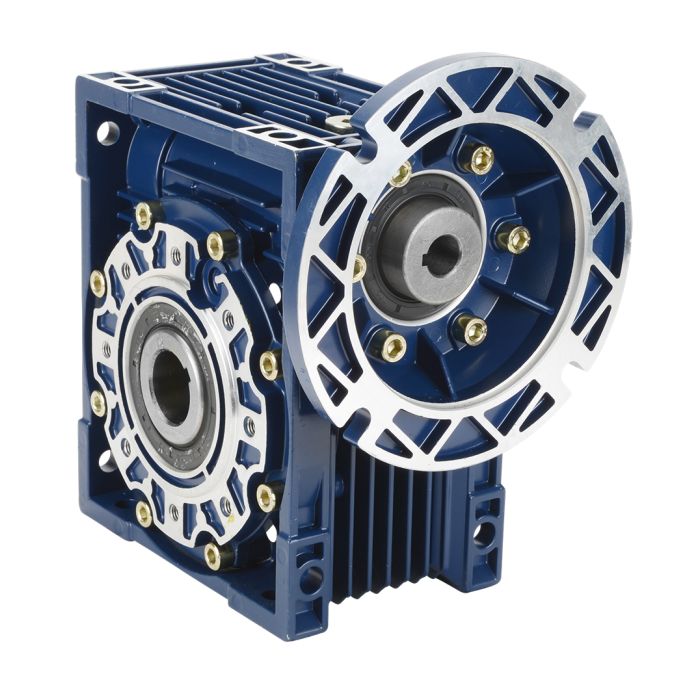

IronHorse medium-duty worm gearbox, 80:1 ratio, 56C-Face input, hollow, 1.25in diameter output shaft, nominal 0.75 hp at 1.0 SF, 1672lbf-in mechanical output torque, 75mm center distance, cast aluminum housing, top and bottom mount.

Product Details

IronHorse gearbox, worm, medium-duty, 80:1 ratio, nominal 0.75 hp at 1.0 SF, 56C-Face input, 1-1/4 inch diameter output shaft, hollow, cast aluminum housing, anti-corrosion epoxy paint finish, 75 mm center distance, 1-stage, double-lip oil seals, pre-filled with lifetime synthetic lube (Mobil #SHC634), top and bottom mount, 1750 RPM input / 18 RPM output.

Specifications

More Information

Manual Quantity Amount

5-10 working day delivery

Product Documents

WGA-75M-080-H1 Technical Spec
