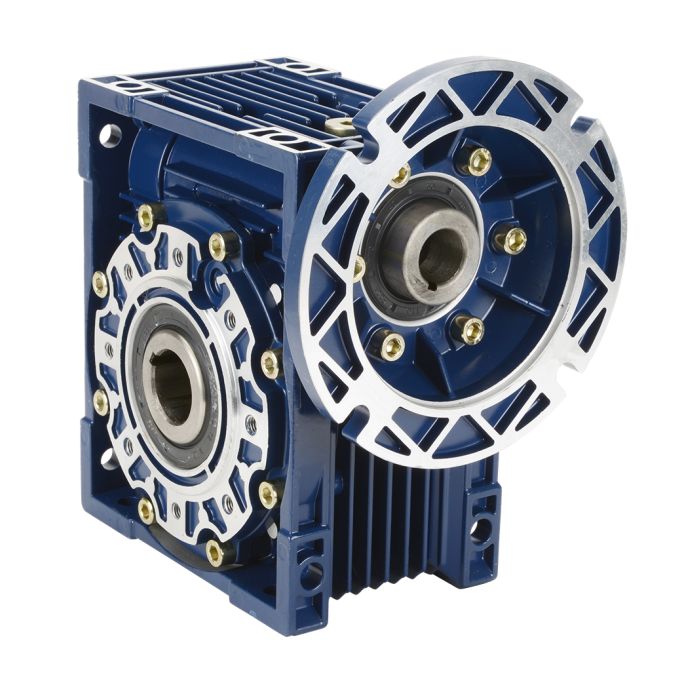

WGA-75M-020-H2
IronHorse medium-duty worm gearbox, 20:1 ratio, 145TC-Face input, hollow, 1.25in diameter output shaft, nominal 3 hp at 1.0 SF, 1849lbf-in mechanical output torque, 75mm center distance, cast aluminum housing, top and bottom mount.
£537.00
IronHorse gearbox, worm, medium-duty, 20:1 ratio, nominal 3 hp at 1.0 SF, 145TC-Face input, 1-1/4 inch diameter output shaft, hollow, cast aluminum housing, anti-corrosion epoxy paint finish, 75 mm center distance, 1-stage, double-lip oil seals, pre-filled with lifetime synthetic lube (Mobil #SHC634), top and bottom mount, 1750 RPM input / 88 RPM output.
More Information
Manual Quantity Amount
5-10 working day delivery
Product Documents
WGA-75M-020-H2 Technical SpecWeight (kg)
9.8180
Country of Origin
China
HS Code
8483.40.50
