WGA-63M-020-H2

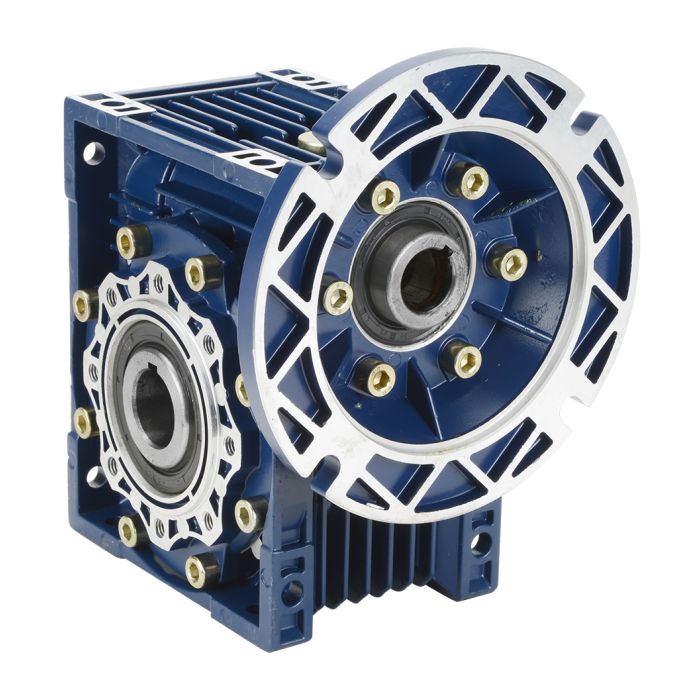

IronHorse medium-duty worm gearbox, 20:1 ratio, 145TC-Face input, hollow, 1.125in diameter output shaft, nominal 2 hp at 1.0 SF, 1186lbf-in mechanical output torque, 63mm center distance, cast aluminum housing, top and bottom mount.
- SKU
- WGA-63M-020-H2
- Stock Availability
- 5-10 working day delivery, contact us for availability
£336.00
IronHorse gearbox, worm, medium-duty, 20:1 ratio, nominal 2 hp at 1.0 SF, 145TC-Face input, 1-1/8 inch diameter output shaft, hollow, cast aluminum housing, anti-corrosion epoxy paint finish, 63 mm center distance, 1-stage, double-lip oil seals, pre-filled with lifetime synthetic lube (Mobil #SHC634), top and bottom mount, 1750 RPM input / 88 RPM output.
| Stock Availability | 5-10 working day delivery, contact us for availability |
|---|---|
| Product Documents | |
| Weight (kg) | 6.864000 |
| Country of Origin | China |
| HS Code | 8483.40.50 |
WGA-63M-020-H2 Technical Spec
