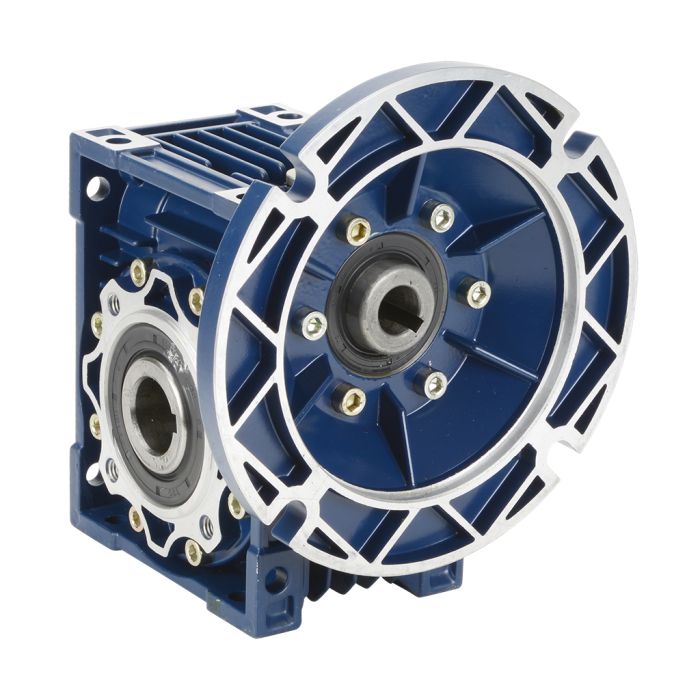

WGA-50M-060-H1
IronHorse medium-duty worm gearbox, 60:1 ratio, 56C-Face input, hollow, 1in diameter output shaft, nominal 0.33 hp at 1.0 SF, 602lbf-in mechanical output torque, 50mm center distance, cast aluminum housing, top and bottom mount.
£287.00
IronHorse gearbox, worm, medium-duty, 60:1 ratio, nominal 0.33 hp at 1.0 SF, 56C-Face input, 1 inch diameter output shaft, hollow, cast aluminum housing, anti-corrosion epoxy paint finish, 50 mm center distance, 1-stage, double-lip oil seals, pre-filled with lifetime synthetic lube (Mobil #SHC634), top and bottom mount, 1750 RPM input / 29 RPM output.
More Information
Manual Quantity Amount
5-10 working day delivery
Product Documents
WGA-50M-060-H1 Technical SpecWeight (kg)
4.2270
Country of Origin
China
HS Code
8483.40.50
Brand
