WGA-30M-060-H1

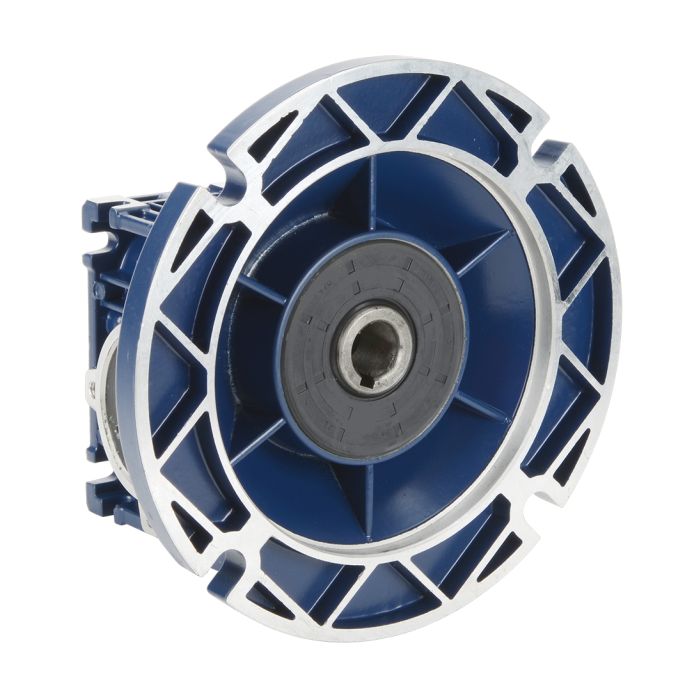

IronHorse medium-duty worm gearbox, 60:1 ratio, 56C-Face input, hollow, 0.625in diameter output shaft, nominal 0.12 hp at 1.0 SF, 142lbf-in mechanical output torque, 30mm center distance, cast aluminum housing, top and bottom mount.
- SKU
- WGA-30M-060-H1
- Stock Availability
- 5-10 working day delivery, contact us for availability
£152.00
IronHorse gearbox, worm, medium-duty, 60:1 ratio, nominal 0.12 hp at 1.0 SF, 56C-Face input, 5/8 inch diameter output shaft, hollow, cast aluminum housing, anti-corrosion epoxy paint finish, 30 mm center distance, 1-stage, double-lip oil seals, pre-filled with lifetime synthetic lube (Mobil #SHC634), top and bottom mount, 1750 RPM input / 29 RPM output.
| Stock Availability | 5-10 working day delivery, contact us for availability |
|---|---|
| Product Documents | |
| Weight (kg) | 2.136000 |
| Country of Origin | China |
| HS Code | 8483.40.50 |
WGA-30M-060-H1 Technical Spec
