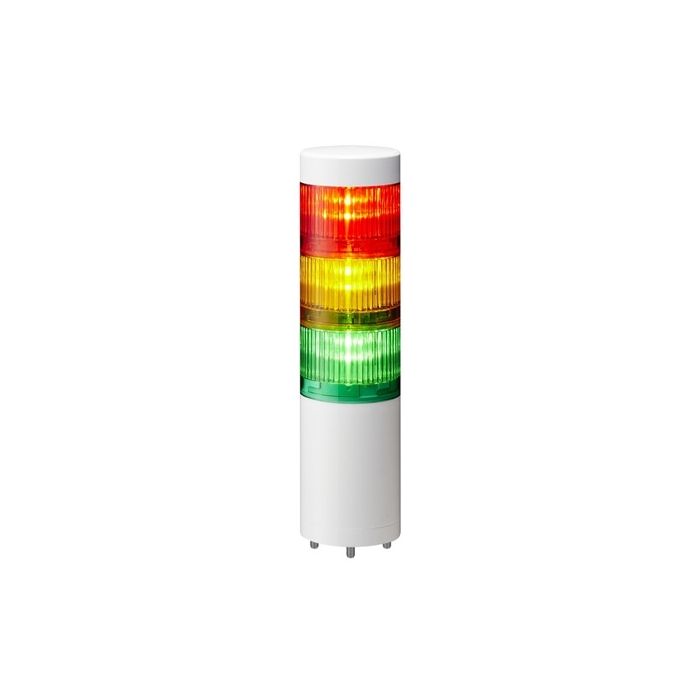

LR6-302WJNW-RYG Patlite Signal tower, off-white, 3 tiers, 24VDC, 60mm, direct mount, cable
|
| Dimension |
60mm diameter |
| Rated Voltage |
24V DC |
| Number of LED Tiers |
3 |
| LED Colors |
Red / Amber / Green |
| Buzzer |
Typ. 88dB |
| Flashing Rate (with buzzer/flash module only) |
60±2 Flashes per minute |
| Unit Weight |
0.40kg |
| Body Color |
Off-white |
| Body/Lens Material |
PC |
| Connection |
Cable (1000mm) |
| Input Type |
PNP/NPN |
| Mounting Style |
Direct Mount |
| Mounting Location |
Indoors |
| Mounting Direction |
Upright |
| Protection Rating |
IP65 / NEMA TYPE 4X, 13 |
| Operating Ambient Temp. |
-20℃ to +50℃ |
| Operating Ambient Humidity |
Less than 90% RH (No Condensation) |
| Storage Ambient Temp. |
-30℃ to +60℃ |
| Storage Ambient Humidity |
Less than 90% RH (No Condensation) |
| Insulation Resistance |
More than 1MΩ at 500V DC between live part and non-current carrying metallic part |
| Withstand Voltage |
1500V AC applied for 1 minute between live part and non-current carrying metallic part without breaking insulation |
| Conformity Standards |
- UL 508, CSA-C22.2 No.14
- EMC Directive (EN 61000-6-4, EN 61000-6-2)
- RoHS Directive (EN IEC 63000)
- FCC Part 15 Subpart B Class A
- KC (KN 61000-6-4, KN 61000-6-2 |
|
|
