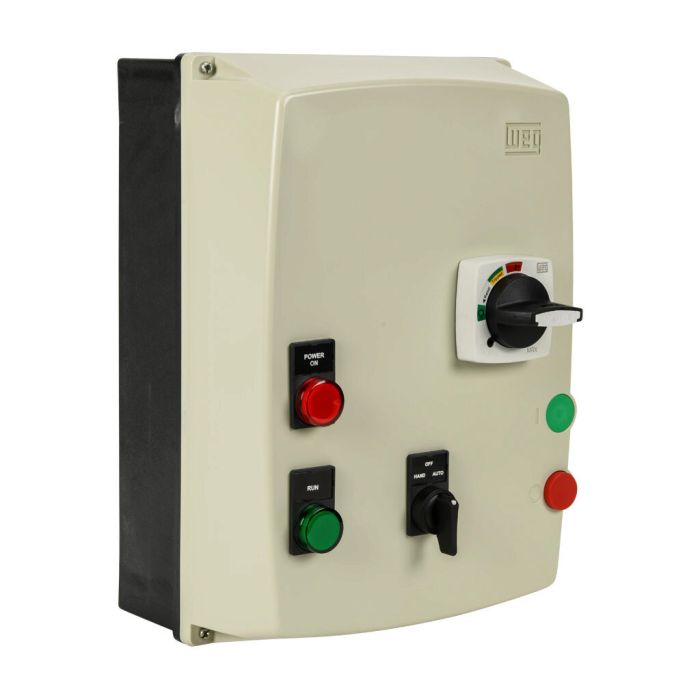

ESWE-B38D39KX-D14 WEG Electric ESWE series combination

WEG Electric ESWE series combination Type-E motor starter, 38A, 3-pole, 480 VAC (50/60Hz) coil voltage, bi-metallic, 25.0-32.0A adjustable, 416A instantaneous trip rating, NEMA 4/4X.

SKU: ESWE-B38D39KX-D14
Stock Availability: 5-10 working day delivery, contact us for availability

£732.00

WEG Electric ESWE series combination Type-E motor starter, 38A, 3-pole, 480 VAC (50/60Hz) coil voltage, bi-metallic, 25.0-32.0A adjustable, 416A instantaneous trip rating, NEMA 4/4X.

Brand	WEG Electric
Series	ESWE
Item	Motor starter
Starter Type	Combination Type-E
Coil Voltage	480 VAC (50/60Hz)
Amperage Rating	38A
Voltage Rating	600 VAC
Horsepower Rating	20hp
Overload Type	Bi-metallic
Full Load Amperage Range	25.0-32.0A adjustable
Instantaneous Trip Rating	416A
Number of Poles	3
Power Poles	(3) N.O.
Auxiliary Contacts	(1) N.O./(1) N.C.
Trip Class	Trip Class 10
Phase Loss Sensitive	Yes
Ground Fault Protection	No
SCCR Rating	25kA SCCR
UL Rating	UL 508A rated
Enclosure Type	NEMA 4/4X
Mounting	Wall
Connection	Screw terminal
Includes	Rotary disconnect switch, HOA selector switch, start/stop pushbuttons, and run indication lights

Stock Availability	5-10 working day delivery, contact us for availability
Brand	Automation Direct
Weight (kg)	5.199000
Country of Origin	BRAZIL
HS Code	8536.50.4000
