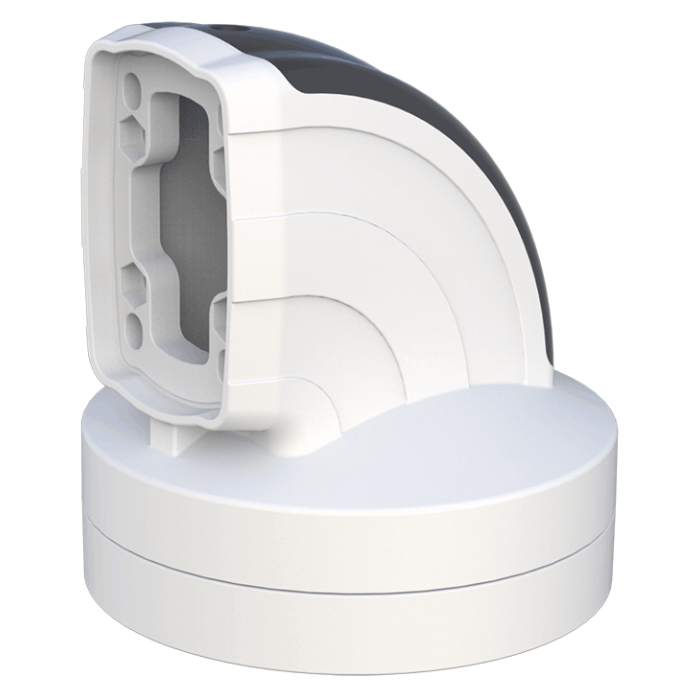

TK060.400
130 mm 310 degree Rotatable 90 degree Panel Angle Coupling
- SKU
- TK060.400
- Stock Availability
- Stocked in UK, up to 3-4 week delivery if Out of Stock
Call for more Information and Prices
TK060.400 Rotatable 90 degree Angle Panel Coupling is designed for combination which operator panels are needed immediately after a 90 degree angle corner turn. Max. diameter of the product is 130mm and the rotation angle around its axis is 310 degree in total.Thanks to the modules ability to turn around, the machine operator can make any position for himself with turning the direction of panel right and left. This product desiged for the panels which have large depth.( For example ECO 1500 series or deeper)
| Stock Availability | Stocked in UK, up to 3-4 week delivery if Out of Stock | ||
|---|---|---|---|
| Brand | Teknokol HMI Enlosures and Support Arms | ||
| Product Documents | |||
| Weight (kg) | 1.700000 | ||
| Drawings |
|
TK060.400 Technical Spec
 | 3D CAD file specifically for this item. |
