MT8121XE

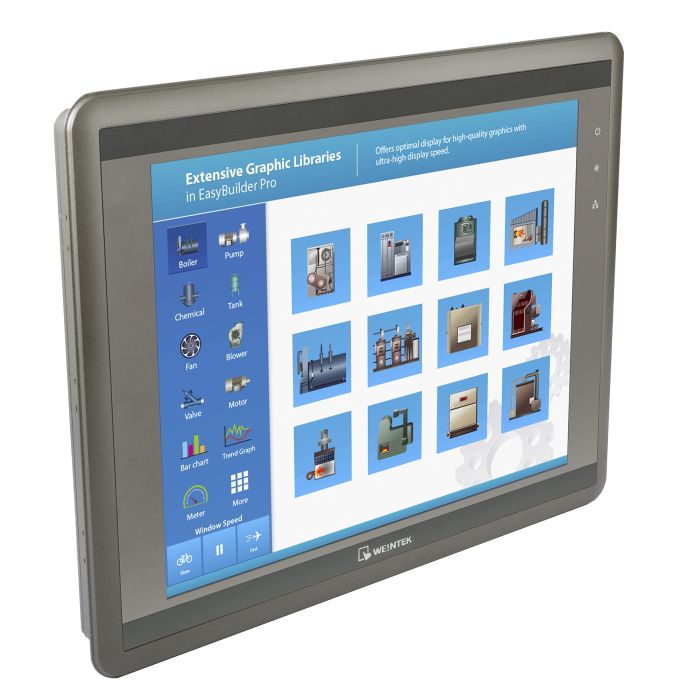

MT8121XE

Be the first to review this product

12.1î TFT colour graphic Touchscreen HMI, Aluminum Enclosure. cULus listed.

Retired Product, please consider the MT8121XE3 as a replacement.

Add to Wish List Add to Compare Email

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Details

12.1" 1024 x 768 TFT LCD, LED Backlight, Fan-less, 256 MB Flash Memory, SD Card Slot, One USB Host Port and one USB Client Port, COM1 & COM3 RS-485 2W support MPI 187.5K & Dual Isolation

Specifications

More Information

Manual Quantity Amount

Retired Product

Product Documents

  XE Series Brochure
  MT8121XE Datasheet
  MT8121XE Installation Instructions

Product Spec

Model	MT8121XE
Display	12.1” TFT
Resolution	1024 x 768
Brightness (cd/ ㎡ )	500
Contrast Ratio	700:1
Backlight Type	LED
Backlight Life Time	>50,000 hrs.
Colours	16.2M
LCD Viewing Angle (T/B/L/R)	N/A
Type	4-wire Resistive Type
Accuracy	Active Area Length(X)±2%, Width(Y)±2%
Flash	256 MB
RAM	256 MB
Processor	32 bits RISC Cortex-A8 1GHz
SD Card Slot	SD/SDHC
USB Host	USB 2.0 x 1
USB Client	USB 2.0 x 1
Ethernet	10/100 Base-T x 1
COM Port	COM1: RS-232/RS-485 2W/4W, COM3: RS-485 2W
RS-485 Dual Isolation	Yes
CAN Bus	N/A
RTC	Built-in
Input Power	24±20%VDC
Power Isolation	Built-in
Power Consumption	800mA@24VDC
Voltage Resistance	500VAC (1 min.)
Isolation Resistance	Exceed 50MW at 500VDC
Vibration Endurance	10 to 25Hz (X, Y, Z direction 2G 30 minutes)
PCB Coating	Yes
Enclosure	Aluminum
Dimensions WxHxD	317 x 244 x 46 mm
Panel Cutout	305 x 231 mm
Weight	Approx. 2.1 kg
Mount	Panel mount, VESA mount 75 x 75 mm
Protection Structure	UL Type 4X (indoor use only) / NEMA4 / IP66 Compliant Front Panel
Storage Temperature	-20° ~ 60°C (-4° ~ 140°F)
Operating Temperature	0° ~ 50°C (32° ~ 122°F)
Relative Humidity	10% ~ 90% (non-condensing)
CE	CE marked
ATEX	N/A
UL	cULus Listed
Software	EasyBuilder Pro Easy Access 2.0 (Optional)
