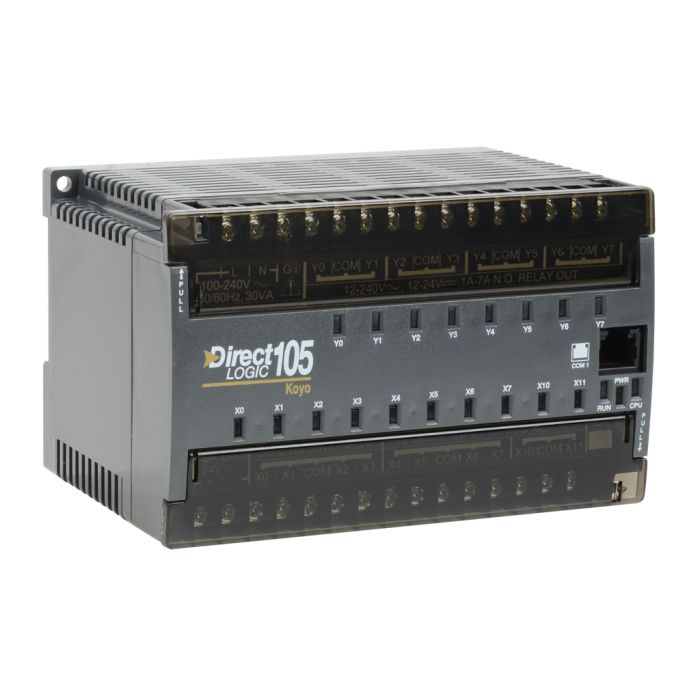

F1-130DR
DL105 PLC, 120-240 VAC required, serial ports, Discrete Input: 10-point, DC, Discrete Output: 8-point, relay.
- SKU
- F1-130DR
- Stock Availability
- Discontinued
Discontinued item.
DL105 CPU, 10 DC in / 8 relay out, requires external 110-220V power (94-240 VAC @ 30VA max., 100-240 VDC @ 30W max.), includes 500mA 24VDC auxiliary device power supply. 2.4K words total (2048 words ladder - EEPROM, 384 words V-memory), RLL/RLLPLUS programming, built-in RS232C programming port. Inputs: 10 DC inputs, 12-24 VDC current sinking/sourcing, 3 isolated commons. First 4 inputs are configurable in one of several high-speed I/O features such as 5kHz counter input, pulse catch input, or interrupt input. Outputs: 8 relay outputs, 12-30 VDC, 12-250 VAC, 7A/pt. max. or 30-150 VDC, 0.5A resistive/pt. max., 4 isolated commons.
| Stock Availability | Discontinued |
|---|---|
| Product Documents | |
| Weight (kg) | 0.559000 |
| Country of Origin | United States |
| HS Code | 8537.10.90 |
F1-130DR Technical Spec
