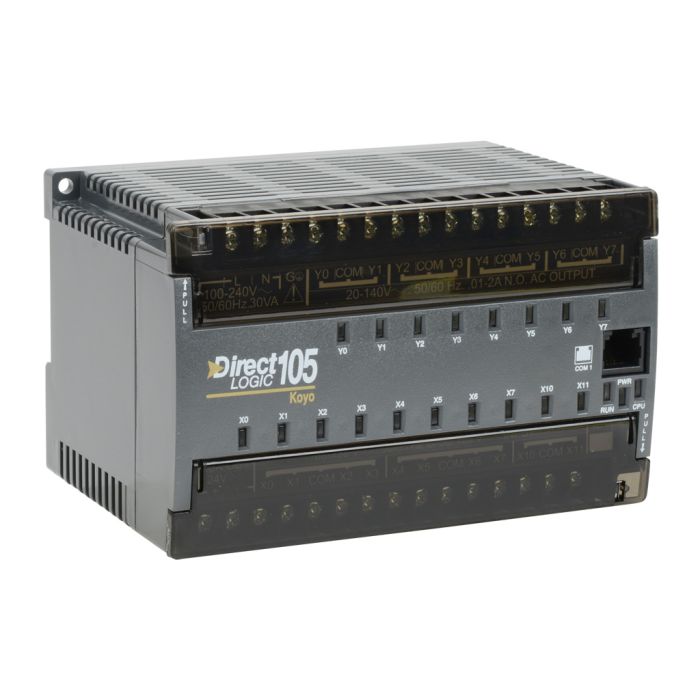

F1-130AA
DL105 PLC, 120-240 VAC required, serial ports, Discrete Input: 10-point, AC/DC, Discrete Output: 8-point, triac.
- SKU
- F1-130AA
- Stock Availability
- Discontinued
Discontinued item.
DL105 CPU, 10 AC in / 8 AC out, requires external 110-220V power (94-240 VAC @ 30VA max., 100-240 VDC @ 30W max.), includes 500mA 24VDC auxiliary device power supply. 2.4K words total (2048 words ladder - EEPROM, 384 words V-memory), RLL/RLLPLUS programming, built-in RS232C programming port. Inputs: 10 AC inputs, 80-132 VAC or 90-150 VDC, 3 isolated commons. Outputs: 8 AC outputs, 20-140 VAC, 1.7A/pt., 4 isolated commons.
| Stock Availability | Discontinued |
|---|---|
| Product Documents | |
| Weight (kg) | 0.495000 |
| Country of Origin | United States |
| HS Code | 8537.10.90 |
F1-130AA Technical Spec
