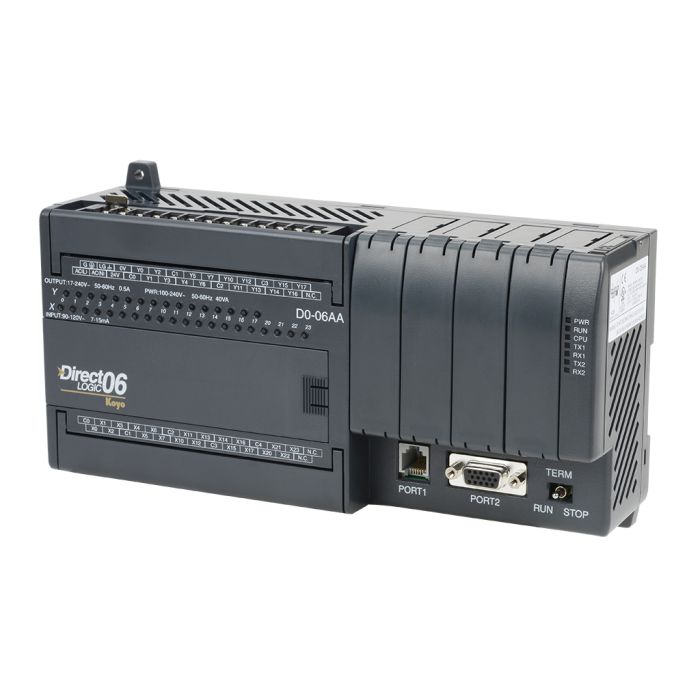

D0-06AA
DL06 CPU, 20 AC in / 16 AC out, requires external 110-220 VAC power. Built-in communication ports. Four option slots available.
- SKU
- D0-06AA
- Stock Availability
- 5-10 working day delivery, contact us for availability
£663.00
DL06 CPU, 20 AC in / 16 AC out, requires external 110-220 VAC power, includes 300mA 24VDC auxiliary device power supply. 14.8k words total (7679 words ladder - flash, 7488 words V-memory), RLL/RLLPLUS programming (DirectSOFT32 Version 4.0 or higher), two built-in RS-232C communication ports. Secondary communications port supports RS-232C/RS-422/RS-485, DirectNET Master/Slave, MODBUS RTU, Master/Slave, and ASCII In/Out. Inputs: 20 AC inputs, 90-120 VAC, 5 isolated commons (4 inputs per common). Outputs: 16 AC outputs, 17-240 VAC, 0.5A/point max., 4 isolated commons (4 points per common). Four option slots available for I/O or communication modules.
| Stock Availability | 5-10 working day delivery, contact us for availability |
|---|---|
| Brand | Automation Direct |
| Product Documents | |
| Weight (kg) | 0.809000 |
| Country of Origin | Japan |
| HS Code | 8537.10.90 |
D0-06AA Technical Spec
