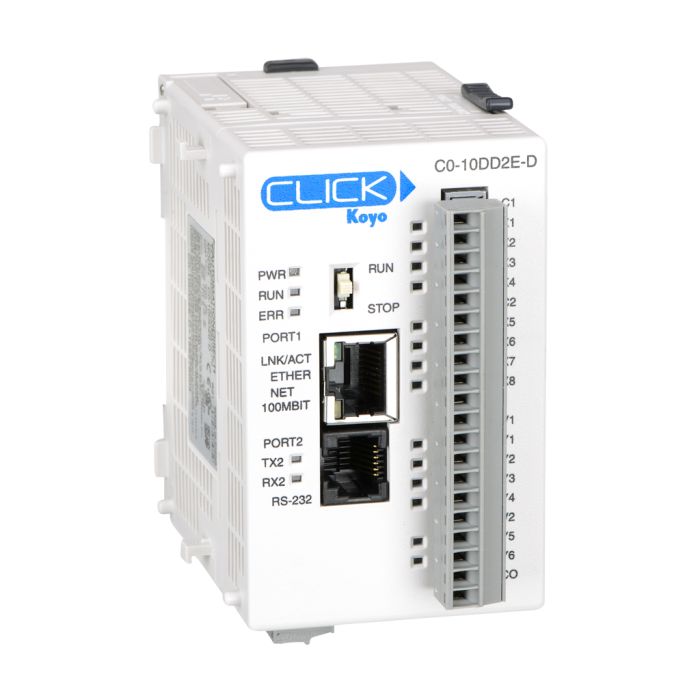

C0-10DD2E-D

CLICK Ethernet Basic PLC, 24 VDC required, Ethernet and serial ports, Discrete Input: 8-point, DC, Discrete Output: 6-point, sourcing.

SKU: C0-10DD2E-D
Stock Availability: Stocked in UK, up to 5-10 working day delivery if Out of Stock

£225.00

CLICK Ethernet Basic PLC, 8 KB user memory, real time clock/calendar, retentive memory, Ethernet (RJ45) port with Modbus TCP, programming and monitoring protocol(s) at 10/100 Mbps, RS-232 (RJ12) port with Modbus RTU Master/Slave and ASCII In/out protocol(s) at up to 115.2k baud, 8-point input, 24 VDC, sinking/sourcing, 6-point output, 24 VDC, sourcing. Removable terminal block included. Requires CLICK programming software v2.00 or later and CLICK CPU firmware v2.00 or later.

Stock Availability

Stocked in UK, up to 5-10 working day delivery if Out of Stock

Product Documents

C0-10DD2E-D Technical Spec

Product Spec

Technical Attributes
Brand	CLICK
Item	PLC
Series	Ethernet Basic
Ladder Memory	8k steps
User Data Memory	16 KB
Programming Language	Ladder
Programming Software	CLICK programming software v2.00 or later and CLICK CPU firmware v2.00 or later
Communication Port and Connection Type(s)	(1) Ethernet 10/100Base-T (RJ45) (1) RS-232 (RJ12)
Port Protocol(s)	Modbus TCP Client/Server Modbus RTU Master/Slave ASCII In/out EtherNet/IP explicit messaging adapter EtherNet/IP implicit messaging adapter programming and monitoring
Port Speed(s)	10/100 Mbps up to 115.2k baud
Real Time Clock/Calendar	Yes
Retentive Memory	Yes
Battery Backup	Yes
Maximum Expansion Modules Allowed	8
External Power Requirement	24 VDC
Number of Discrete Input Points	8
Nominal Input Voltage	24 VDC
Voltage Type	DC
Discrete Input Type	Sinking/sourcing
Number of Isolated Discrete Input Commons	2
Number of Points per Discrete Input Common	4
Number of Discrete Output Points	6
Nominal Output Voltage	24 VDC
Discrete Output Type	Sourcing
Load Current	0.1A/point
Number of Isolated Discrete Output Commons	1
Number of Points per Discrete Output Common	6
Maximum Number of PID Loops	8
Number of High-Speed Capable Input Points	4
High-Speed Counter(s)	up to (4) up counters up to (4) down counters up to (2) up/down counters up to (2) pulse/direction (bi-directional) counters up to (2) quadrature (A and B) counters up to (1) quadrature (A and B with Z) counter
Interval Measurement	up to (4) single input (edge) timers up to (2) dual input (dual edge) timers
Duration Measurement	up to (4) single input (edge) timers
Frequency Measurement	up to (4) single input up counters up to (2) quadrature input (A and B) counters
Interrupt(s)	up to (4) input interrupts up to (4) timer interrupts
Table-Driven Input(s)	up to (4) preset tables
Includes	Removable terminal block
Additional Information	Purchase D2-BAT-1 backup battery separately

Weight (kg)

0.213000

Country of Origin

China

HS Code

8537.10.90
