Retired C-more Touch Panels

C-more Touch Panels EA7 Series

C-more HMI touch panels combine vivid graphical displays of system data with touch-screen control. Create vibrant, informative screens with touchable objects and replace the pushbuttons, switches, meters, and other peripheral devices typically used in automated systems. C-more panels come in several sizes and are programmed with low-cost, user-friendly software.

C-more® HMI Touch Panels

C-more HMI - Easy to configure, install and maintain ...

Wide screen and reduced price models available

C-more industrial touch screens are designed to give you the best cost of ownership, considering initial price, features, ease of use, reliability and free award-winning technical support. More and more people have found that C-more touch panels have what it takes to meet most of their HMI application needs.

C-more is programmed with easy-to-use configuration software that provides a powerful set of tools for developing simple or very complex applications. The C-more software makes touchscreen panel setup and C-more programming quick and simple, and all C-more touch panels use the same programming package.

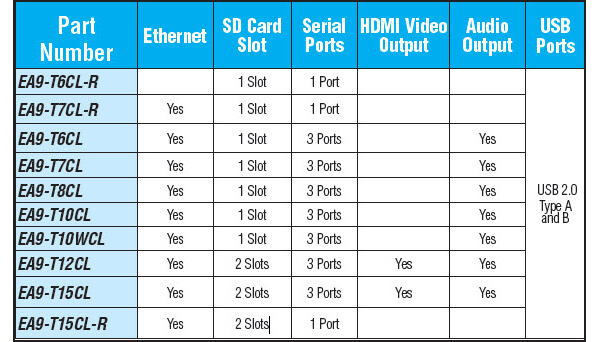

C-more Touch Panels - 10 Models, 7 Screen Sizes
C-more PLC Drivers and Supported Protocols
C-more Remote HMI App

Available for: iPhone® / iPad® / iPod touch® and Android Devices

C-more HMI Touch Panels - 10 Models, 7 Screen Sizes

C-more EA9 Touch Panels Features Technical Overview

Features:

C-more touch panels are fully programmable and provide power and flexibility through a vast set of features. Color TFT touch screen monitors are available in 6", 7", 8", 10", 10"wide, 12" or 15" versions.

Pre-built touch panel components for easy screen design
Screen objects such as Toggle Switch, Slide Switch, Selector Switch, Throw Switch, Thumbwheel Switch, Meters, PID Faceplates, Analog/Digital Clock
SD card for user program backup and logging (not all models)
Field expandable user memory
All models support 64K colors
Multiple languages (up to 9)
Serial PLC Interface RS-232C/422/485
Ethernet port 10/100 MB
2 USB ports, Type B (downloads and programming) and Type A (device options)
Up to 9999 screens, depending on complexity
Built-in clock and calendar
Built-in soft keypad for numeric and alphanumeric entry
Password protection for every touch object
Passwords for up to eight user groups
Unlimited levels of undo and 16 levels of redo
Import bitmaps or bitmap objects, such as pushbuttons
40-character tag names
Sound - Audio line out (full featured models)
Animation Objects
Project Simulation
Object grouping
Color gradation for objects
Analog touch overlay (no predefined touch cells)
Overlapping Objects
Background Screens
User Library, including:
- Objects
- Screen
- Graphic
- Sound
- Video
Send e-mail
Web server
FTP Server

Networking

C-more panels with Ethernet can communicate via various types of networking protocols using the Ethernet network interface. The Ethernet port can be used for downloading a project to the panel, for communication with multiple PLCs (and multiple brands of PLCs), and for advanced features such as e-mail and FTP access and allowing the panel to act as a Web server.

Ethernet capability enables your C-more panel to connect to your AutomationDirect PLC Ethernet network. For the high-speed Ethernet LAN 10/100BaseT network connection, the following PLCs can be used:

PLC	Ethernet Module Needed
Do-more H2	Ethernet port embedded on H2-DM1E CPU or the H2-ECOM100 (with H2-DM1E CPU or H2-DM1 CPU)
Do-more T1H	Ethernet port embedded on T1H-DM1E CPU
Do-more BRX	Ethernet port embedded on select MPUs
Productivity1000	Ethernet port embedded on all CPUs
Productivity2000	Ethernet port embedded on all CPUs
Productivity3000	Ethernet port embedded on all CPUs

PLC	Ethernet Module Needed
DL05	H0-ECOM100
DL06	H0-ECOM100
DL205	H2-ECOM100
DL405	H4-ECOM100

The other Ethernet drivers included with all Ethernet capable C-more panels are:

Ethernet/IP™

MODBUS TCP

Entivity (Think & Do) MODBUS TCP/IP

Remote HMI

The Remote HMI feature allows remote users to connect, monitor, and control any C-more panel that supports Ethernet. With the proper network configuration, remote users can connect with two simple methods:

PC Web Browser
Using a Web browser on any PC to operate and monitor the local HMI system from any location with network access.
Use your Mobile Device
The C-more Remote HMI App allows remote access and control for mobile users who have a wi-fi or cellular connection. This App is available for Apple iOS and Android Devices and can be downloaded from the
iTunes App StoreSM, Google Play and AMAZON. More Info
No Additional Hardware required
The C-more Remote Access feature resides in the panel and requires no option modules. Simply configure the network settings in the panel project and connect the panel to a network.
Multilevel Logon Security
Three Remote Access user accounts can be configured and stored in the panel project. Each account allows up to five remote users to be connected simultaneously.
Multilevel Access Control
Each account can be configured in one of the following levels of access:
- View Only
- View and allow Screen Change only
- Full Control
Programmable Notification Tags
Activation and Notification Tags provide an option for each account to have associated user configured TAGS that allow the Panel project or PLC project to indicate that a remote user is connected or to enable or disable the remote access feature.HEAD These tags can be used to activate alarms, events or notifications to alert local operators that a remote user is connected. The Disable/Enable TAGS can be assigned to a switch to allow local operators the ability to enable or disable the remote access feature for security or safety reasons.
