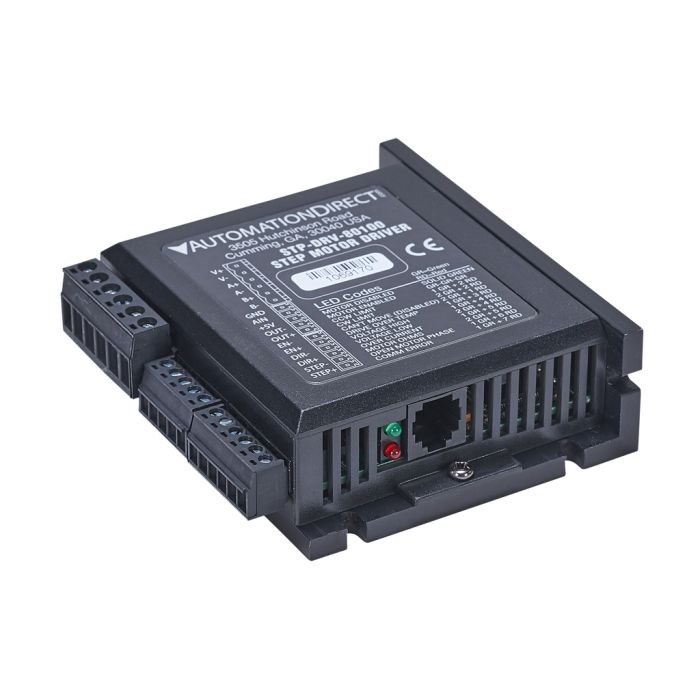

STP-DRV-80100
SureStep microstepping drive, 10A per phase, 24-80 VDC, 2-phase bipolar PWM output; step and direction, CW/CCW, quad, analog, internal indexing control modes.
- SKU
- STP-DRV-80100
- Stock Availability
- 5-10 working day delivery, contact us for availability
£406.00
SureStep microstepping drive, max 10A per phase, 2-phase bipolar PWM controlled current, 24-80 VDC powered, optically isolated digital inputs for Step, Direction, and Enable. Software selectable microstep modes (200 to 512k steps/rev), software selectable idle current cutback, capable of running step/direction, CW/CCW, A/B Quad, analog input (velocity mode), internal indexing actuated by serial commands and serial command control (via RS-232 communication). Advanced features include anti-resonance damping, torque ripple smoothing, command signal filtering, self-test mode and circuit protection (overvoltage, undervoltage, overtemp, motor/wiring short circuit detection). 10 ft. RS-232 cable included for programming and/or communications to drive, female DB9 to modular (RJ11) 6P4C connector. Setup software available for purchase on CD or can be downloaded for free from AutomationDirect Web site.
| Stock Availability | 5-10 working day delivery, contact us for availability |
|---|---|
| Brand | Automation Direct |
| Product Documents | |
| Weight (kg) | 0.064000 |
| Country of Origin | China |
| HS Code | 8503.00.95 |
STP-DRV-80100 Technical Spec
