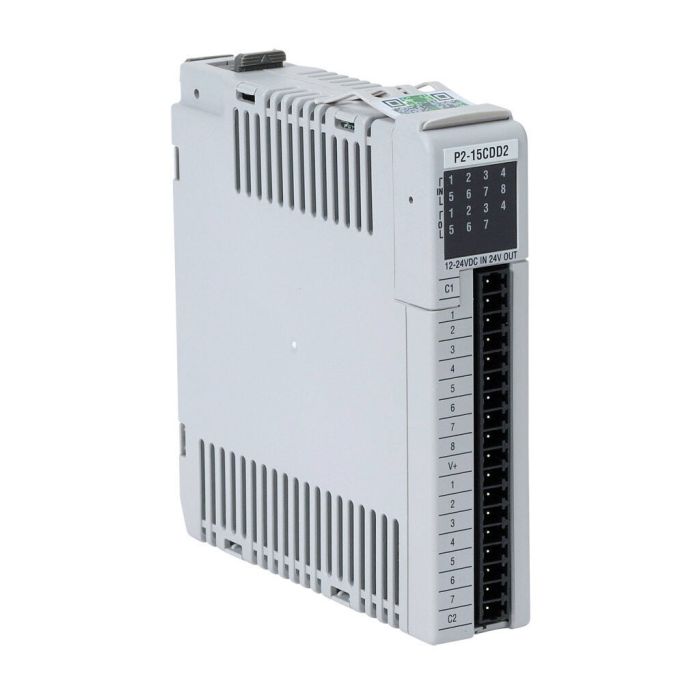

P2-15CDD2 Productivity2000 discrete combo module, Input: 8-point, 12-24 VDC, sinking/sourcing, Output: 7-point, 12-24 VDC, sourcing

Productivity2000 discrete combo module, Input: 8-point, 12-24 VDC, sinking/sourcing, Output: 7-point, 12-24 VDC, sourcing, 1A/point @ 60 deg C, 2A/point @ 55 deg C. Requires P2-RTB or P2-RTB-1 removable terminal block or ZIPLink pre-wired cables.

Product Attribute Table

	Technical Attributes
Brand	Productivity2000
Item	Combo module
I/O Module Type	Discrete
Number of Input Points	8
Nominal Input Voltage	12-24 VDC
Discrete Input Type	Sinking/sourcing
Number of Non-Isolated Discrete Input Commons	1
Number of Points per Discrete Input Common	8
Number of Output Points	7
Nominal Output Voltage	12-24 VDC
Discrete Output Type	Sourcing
Number of Non-Isolated Discrete Output Commons	1
Number of Points per Discrete Output Common	7
Load Current	1A/point @ 60 deg C, 2A/point @ 55 deg C
Fuse Type	External fusing 8A max (user supplied)
External Power Requirement	12-24 VDC
Requires	P2-RTB or P2-RTB-1 removable terminal block or ZIPLink pre-wired cables
Programming Software	Productivity Suite programming software v4.7 or later

Stock Availability	5-10 working day delivery, contact us for availability
Brand	Automation Direct
Weight (kg)	0.160000
Product box dimensions (approx):	5cm x 12cm x 13cm
Country of Origin	USA
HS Code	8537.10
Compliance Information	Agency Compliance & Certifications UL Listed File #: E139594 UL Recognized File #: None UL Hazardous File #: None UL Product iQ™ (Search for UL file number above.) View CE declarations CSA File #: None Search CSA file numbers RoHS Status: Yes (See CE Doc) EU REACH document Other: None Conflict Minerals Information
