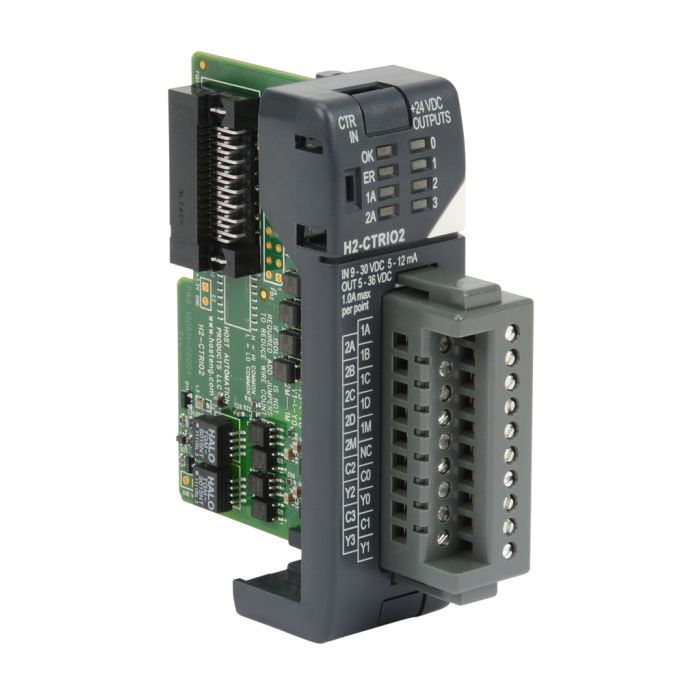

H2-CTRIO2
High-speed counter interface module for D2-240, D2-250(-1), D2-260 CPU based PLCs, Do-more H2 and T1H series PLCs, and WinPLC. Not compatible with D2-230 CPU.
- SKU
- H2-CTRIO2
- Stock Availability
- 5-10 working day delivery, contact us for availability
£551.00
High-speed counter interface module for D2-240, D2-250(-1), D2-260 CPU based PLCs, Do-more H2 and T1H series PLCs, and WinPLC. (8) 9-30 VDC sink/source inputs, (4) 5-36 VDC isolated sink/source outputs, 1A per point. Inputs supported: 2 quadrature encoder counters up to 250kHz, or 4 single-channel counters up to 250kHz, and 4 high-speed discrete inputs for Reset, Inhibit, or Capture. Outputs supported: 4 independently configurable high-speed discrete outputs or 2 channels pulse output control, 20Hz-250kHz per channel, pulse and direction or CW/CCW pulses. (Not compatible with D2-230 CPU.) Must use with Do-more Designer or CTRIO Workbench v2.2.0 or higher.
| Stock Availability | 5-10 working day delivery, contact us for availability |
|---|---|
| Brand | Automation Direct |
| Product Documents | |
| Weight (kg) | 0.091000 |
| Country of Origin | United States |
| HS Code | 8537.10.90 |
H2-CTRIO2 Technical Spec
