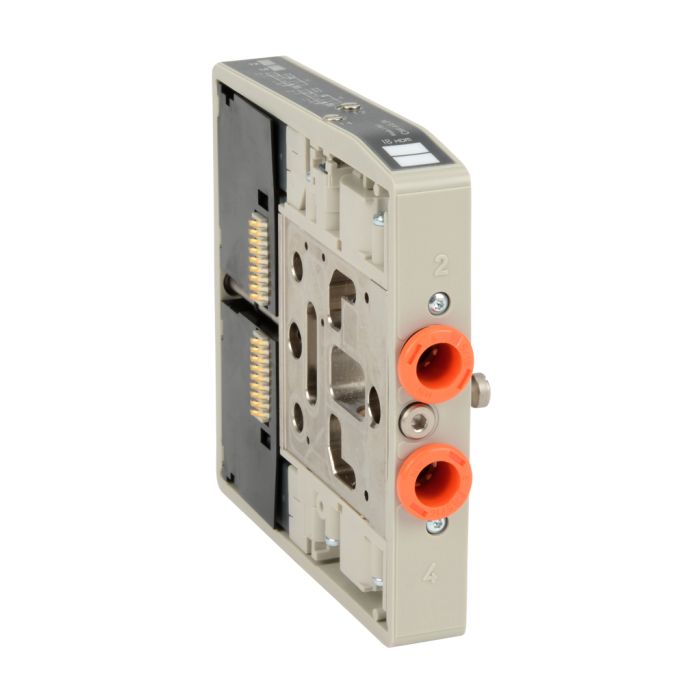

CMV-A1L-3A
NITRA pneumatic double compact modular solenoid valve, 3-way, 2-position, 2 N.C., spool, reinforced technopolymer body, locking manual override, (2) 5/16in (8mm) push-to-connect tubing outlet(s), Cv=0.65, 24 VDC.
- SKU
- CMV-A1L-3A
- Stock Availability
- 5-10 working day delivery, contact us for availability
£154.00
NITRA pneumatic solenoid valve, compact modular, (2) 3-way, 2-position, spring return spool valves, 2 N.C., (2) 5/16 inch (8 mm) push-to-connect tubing connection(s), 24 VDC operating voltage, 2 solenoid(s), Cv=0.65, locking manual override, LED indication, reinforced technopolymer body. Requires one CMV series left end plate and right end plate for any combination of one to sixteen solenoids. Valve uses two of the available 16 wiring positions on the inlet plate.
| Stock Availability | 5-10 working day delivery, contact us for availability |
|---|---|
| Brand | Automation Direct |
| Product Documents | |
| Weight (kg) | 0.182000 |
| Country of Origin | Italy |
| HS Code | 8481.20.00 |
CMV-A1L-3A Technical Spec
