CLICK Series PLCs (Stackable Micro Brick)

Lamonde Products CLICK Series PLCs (Stackable Micro Brick)

Programmable controllers come in many form factors and levels of hardware options and software capabilities. CLICK series controllers are low-cost, brick/stackable units used for simple control and monitoring, available with Ethernet communication and free easy-to-use programming software.


Click PLCs  CLICK® Series Programmable Logic Controllers (PLCs)
Automation Direct / Koyo CLICK PLCs (programmable logic controllers)

Need help with your CLICK application?

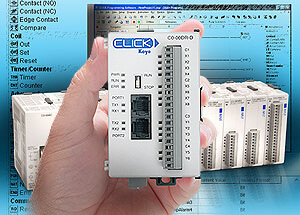

The CLICK PLC offers a scalable solution

The stand-alone CLICK PLCs can compete on size, price and ease of use with hardware designed for micro-projects, even programmable relays. But, they are also expandable and have features you'd expect in a practical PLC.

• Six Types of PLC Units to Fit Your Needs

  • Basic PLCs
    with discrete-only inputs and outputs

  • Standard PLCs
    with discrete-only I/O, plus an extra communications port and battery backup

  • Analog PLCs
    both discrete and analog I/O, plus an extra comm port and battery backup

  • Ethernet Basic PLCs
    with discrete-only I/O and battery backup

  • Ethernet Standard PLCs
    with discrete-only I/O, plus an extra communications port and battery backup

  • Ethernet Analog PLCs
    both discrete and analog I/O, plus an extra comm port and battery backup

• High Speed Counting Features Added

  • CLICK Ethernet PLC UnitsHigh speed counting and interval/duration/frequency measurement
  • Supported by Ethernet CPUs with DC inputs
  • Counting: Up, Down, Up/Down, Pulse/Direction, Quadrature (with Z)
  • Measurement: Intervals (Edge-Edge), Duration (High/Low), Frequency (Hz/RPM)
  • Preset Table to Trigger Outputs or Call Interrupt Programs
  • 100 kHz Inputs
  • 10/100 Mbps multipurpose Ethernet port for faster networking and control.
  • Use the built-in Ethernet port to program your system, network your CLICK or control Ethernet-enabled devices.
  • Using the Modbus TCP and EtherNet/IP protocols, the new CLICK PLCs will easily integrate into existing networks and provide simple, cost effective solutions.

• Built-in Communications

  • CLICK Basic PLCs have two built-in RS-232 communications ports: one programming port and one that can be configured for either Modbus RTU or ASCII protocols
  • CLICK Standard and Analog PLCs have an additional built-in RS-485 communications port
  • CLICK Ethernet PLC units have one built-in Ethernet communications port that supports Modbus TCP Client/Server and EtherNet/IP Adapter/Server protocols and one standard RS-232 serial comm port. Additionally, Ethernet Standard and Ethernet Analog PLC Units have an RS-485 port for Modbus and ASCII communication.

• Easy Installation

  • The CLICK PLC programmable control system does not require a mounting base, which saves on space.
  • The CLICK PLC CPU and I/O modules are connected together via an expansion port on the sides of the modules.

• Expandable I/O

  • A powered CLICK PLC unit can be used as a complete standalone PLC control system with eight input points and six output points built-in,
  • Or, the PLC controller can be expanded with the addition of up to eight I/O modules.
  • A variety of CLICK I/O modules are available for flexible and optimal PLC system configuration. The I/O numbering system is decimal.

• FREE PLC Programming Software

  • The CLICK PLC supports a very simple, but useful set of 21 easy to use instructions.
  • The 21 instructions cover most applications that are suitable for this class of programmable logic controller.
  • Download FREE CLICK PLC Programming Software Now!


Complete CLICK PLC (Programmable Logic Controller) OverviewThis link opens a PDF.


Desc

Items 1-24 of 67

per page
View as Grid List
Page
  1. £45.00
    SKU: C0-08SIM
    C0-08SIM

    Koyo CLICK PLC 8 point input simulator module.

    Learn More
  2. £0.00
    SKU: EA9-PGMSW-DD
    EA9-PGMSW-DD

    C-more Windows programming software, download for free here! For use with C-more EA9 series touch panels.

    Requires USB or Ethernet connection to touch panel.

    Learn More
  3. £0.00
    SKU: C0-PGMSW-DD
    C0-PGMSW

    CLICK PLC Windows PC programming and documentation software for the CLICK C0 series PLCs, software and manual in PDF format included in the download file.

    Learn More
  4. £55.00
    SKU: C0-08TR-3
    C0-08TR-3

    CLICK relay output module, 8-point, 6-240 VAC/6-27 VDC, (1) Form A, 2 isolated common(s), 4 point(s) per common, 1A/point. Removable terminal block included.

    Learn More
  5. £14.31
    SKU: C0-8TB
    C0-8TB
    CLICK terminal blocks, replacement, 11-pole. Package of 2. For use with CLICK 8-point I/O modules. Learn More
  6. £8.35
    SKU: C0-4TB
    C0-4TB
    CLICK terminal blocks, replacement, 4-pole. Package of 2. For use with CLICK PLCs. Learn More
  7. £8.35
    SKU: C0-3TB
    C0-3TB
    CLICK terminal blocks, replacement, 3-pole. Package of 2. For use with CLICK standard and analog PLCs. Learn More
  8. £20.27
    SKU: C0-16TB
    C0-16TB
    CLICK terminal blocks, replacement, 20-pole. Package of 2. For use with CLICK 16-point I/O modules and CLICK PLCs built-in I/O. Learn More
  9. £48.00
    SKU: C0-01AC
    C0-01AC
    CLICK AC power supply, 100-240 VAC nominal input, 24 VDC nominal output, 1.3A continuous. Learn More
  10. £35.00
    SKU: C0-00AC
    C0-00AC
    CLICK AC power supply, 100-240 VAC nominal input, 24 VDC nominal output, 0.5A continuous. Learn More
  11. £212.00
    SKU: C0-12ARE-2-D
    C0-12ARE-2-D

    CLICK Ethernet Analog PLC, 24 VDC required, Ethernet and serial ports, Discrete Input: 4-point, AC, Analog Input: 4-channel, voltage, Discrete Output: 4-point, relay, Analog Output: 2-channel, voltage.

    Learn More
  12. £212.00
    SKU: C0-12DRE-2-D
    C0-12DRE-2-D

    CLICK Ethernet Analog PLC, 24 VDC required, Ethernet and serial ports, Discrete Input: 4-point, DC, Analog Input: 4-channel, voltage, Discrete Output: 4-point, relay, Analog Output: 2-channel, voltage.

    Learn More
  13. £201.00
    SKU: C0-12DD2E-2-D
    C0-12DD2E-2-D

    CLICK Ethernet Analog PLC, 24 VDC required, Ethernet and serial ports, Discrete Input: 4-point, DC, Analog Input: 4-channel, voltage, Discrete Output: 4-point, sourcing, Analog Output: 2-channel, voltage.

    Learn More
  14. £201.00
    SKU: C0-12DD1E-2-D
    C0-12DD1E-2-D

    CLICK Ethernet Analog PLC, 24 VDC required, Ethernet and serial ports, Discrete Input: 4-point, DC, Analog Input: 4-channel, voltage, Discrete Output: 4-point, sinking, Analog Output: 2-channel, voltage.

    Learn More
  15. £212.00
    SKU: C0-12ARE-1-D
    C0-12ARE-1-D

    CLICK Ethernet Analog PLC, 24 VDC required, Ethernet and serial ports, Discrete Input: 4-point, AC, Analog Input: 4-channel, current, Discrete Output: 4-point, relay, Analog Output: 2-channel, current.

    Learn More
  16. £212.00
    SKU: C0-12DRE-1-D
    C0-12DRE-1-D

    CLICK Ethernet Analog PLC, 24 VDC required, Ethernet and serial ports, Discrete Input: 4-point, DC, Analog Input: 4-channel, current, Discrete Output: 4-point, relay, Analog Output: 2-channel, current.

    Learn More
  17. £201.00
    SKU: C0-12DD2E-1-D
    C0-12DD2E-1-D

    CLICK Ethernet Analog PLC, 24 VDC required, Ethernet and serial ports, Discrete Input: 4-point, DC, Analog Input: 4-channel, current, Discrete Output: 4-point, sourcing, Analog Output: 2-channel, current.

    Learn More
  18. £201.00
    SKU: C0-12DD1E-1-D
    C0-12DD1E-1-D

    CLICK Ethernet Analog PLC, 24 VDC required, Ethernet and serial ports, Discrete Input: 4-point, DC, Analog Input: 4-channel, current, Discrete Output: 4-point, sinking, Analog Output: 2-channel, current.

    Learn More
  19. £212.00
    SKU: C0-12ARE-D
    C0-12ARE-D

    CLICK Ethernet Analog PLC, 24 VDC required, Ethernet and serial ports, Discrete Input: 4-point, AC, Analog Input: 2-channel, current/voltage, Discrete Output: 4-point, relay, Analog Output: 2-channel, current/voltage.

    Learn More
  20. £212.00
    SKU: C0-12DRE-D
    C0-12DRE-D

    CLICK Ethernet Analog PLC, 24 VDC required, Ethernet and serial ports, Discrete Input: 4-point, DC, Analog Input: 2-channel, current/voltage, Discrete Output: 4-point, relay, Analog Output: 2-channel, current/voltage.

    Learn More
  21. £201.00
    SKU: C0-12DD2E-D
    C0-12DD2E-D

    CLICK Ethernet Analog PLC, 24 VDC required, Ethernet and serial ports, Discrete Input: 4-point, DC, Analog Input: 2-channel, current/voltage, Discrete Output: 4-point, sourcing, Analog Output: 2-channel, current/voltage.

    Learn More
  22. £201.00
    SKU: C0-12DD1E-D
    C0-12DD1E-D

    CLICK Ethernet Analog PLC, 24 VDC required, Ethernet and serial ports, Discrete Input: 4-point, DC, Analog Input: 2-channel, current/voltage, Discrete Output: 4-point, sinking, Analog Output: 2-channel, current/voltage.

    Learn More
  23. £178.00
    SKU: C0-11ARE-D
    C0-11ARE-D

    CLICK Ethernet Standard PLC, 24 VDC required, Ethernet and serial ports, Discrete Input: 8-point, AC, Discrete Output: 6-point, relay.

    Learn More
  24. £178.00
    SKU: C0-11DRE-D
    C0-11DRE-D

    CLICK Ethernet Standard PLC, 24 VDC required, Ethernet and serial ports, Discrete Input: 8-point, DC, Discrete Output: 6-point, relay.

    Learn More
