New Product Announcement – iR-ECAT EtherCAT Communication Coupler

Product Introduction

EtherCAT (Ethernet for Control Automation Technology) is a high performance and very efficient Ethernet-based fieldbus, thanks to these advantages, it is one of the most widely adopted industrial Ethernet technologies and has gradually become a standard communication interface in industry. Responding to the increasing demand for EtherCAT, Weintek are releasing a new iR Series EtherCAT communication coupler, iR-ECAT, to facilitate integration of iR Series I/O modules into EtherCAT applications.

iR-ECAT connecting iR Series I/O modules works as an EtherCAT slave, which allows control by EtherCAT master controllers simply after importing the ESI (EtherCAT Slave Information file) description file of the iR-ECAT. Being compliant to ETG5001, convenient to configure and easy-to-use, iR-ECAT is a powerful tool for integrating with EtherCAT systems.

iR-ECAT Features

• Exceptional Performance and Fast Communication

An EtherCAT network is different from a conventional industrial network. In a conventional network, data exchange between each node pair requires at least one message, leading to low bandwidth utilization. In an EtherCAT network, messages are read and processed as they pass through a node. If output data is required, it is inserted in the message and transmitted to the next node. iR-ECAT is equipped with a dedicated chip process EtherCAT to fulfil the demand for high speed and high-efficiency network for industrial control applications.

• Flexible Topology

EtherCAT supports almost any topology: Line, Tree, Star topologies and any combination suitable for the environment. Each iR-ECAT is equipped with two Ethernet ports, which eliminates the need for switches or hubs.

• Simple and Affordable

Node ID can be easily configured by using rotary switches, and the unit is ready for use when it is connected to the network using an Ethernet cable, which greatly shortens the time needed for wiring and testing, and also saves manpower, making maintenance easier than ever.

• Rich Combination of iR Series Modules

iR-ECAT can be connected to miscellaneous iR Series modules suitable for the application. With Weintek’s ibus technology, the response speed of iR Series I/O modules is ensured to be comparable with EtherCAT’s efficiency.

Unlike PLCs mounted on racks with a limited number of slots, or fixed Remote I/O that is not expandable, the modular design of iR Series provides great flexibility by allowing one to add I/O modules as the application may require.

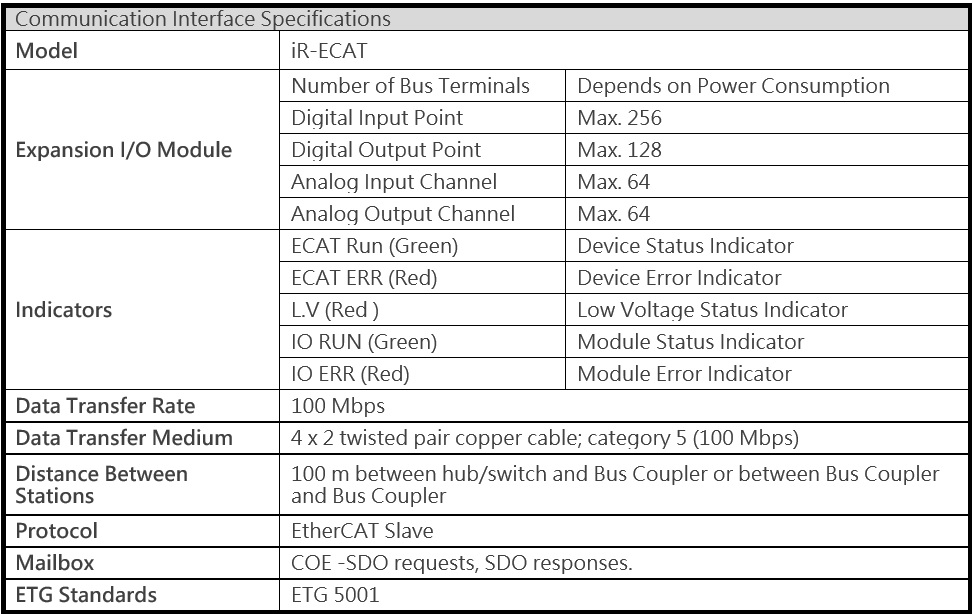

Specifications

EtherCAT® is a registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany.

*Expected to be available from our stock late May 2019*
