New Product Annoucement – Analog and Temperature Modules For Weintek iR Series i/o

Earlier in 2018, Weintek released a high-efficiency control solution: HMI+CODESYS+I/O Module, which has received positive feedback from customers. To make it a more complete solution, Weintek has developed new modules for the iR Series modules: Analog I/O modules and a Temperature module. iR Series i/o combined with a CODESYS enabled HMI can take care of complex tasks that traditionally would have required a separate PLC – saving you both time and money.

The new four new iR Series Analog Modules are:

iR-AI04-VI 4 channel Analog Input
iR-AQ04-VI 4 channel Analog Output
iR-AM06-VI 4 channel Analog Input + 2 channel Analog Output
iR-AI04-TR 4 channel Temperature Input

Features:

Analog Input Modules

• Configurable Channel Mode
– Each channel may be configured as input voltage or current mode (-10~+10V, -5V~+5V, 1~5V, -20~20mA, 4~20mA) for different applications.
• User-Defined Conversion Rate
– Built-in digital-to-analog conversion with user-defined ranges eliminating the need for complex conversion program in a PLC.

• Input Filter
– The built-in input filter enhances signal precision to achieve better control.
• Disconnection Detection
– In 1-5V / 4-20mA mode, a channel alarm will be generated when an input disconnection is detected.
• Fast Conversion Mode
– Conversion time per channel is 2ms; in fast conversion mode where only one channel is used, the conversion time can be reduced to 500us.

Analog Output Modules

• Configurable Channel Mode
– Each channel may be configured as output voltage or current mode (-10~+10V, -5V~+5V, 1~5V, -20~20mA, 4~20mA) for different applications.
• User-Defined Conversion
– Built-in digital-to-analog conversion with user-defined range eliminates the need for writing complex conversion program for PLC.
• Linear Output (Soft-Start)
– Adjustable soft-start function allows gradual increase or decrease of the output
• Voltage Short Circuit & Current Open Circuit Protection
– The module will generate an alarm and disable the output if a voltage output is short-circuited or current output open-circuit is detected.

Temperature Input Module

• Supports most Thermocouple and RTD devices on the market.

Thermocouples:  J,K,R,S,T,E,N,B,C,L,U,TXK/XK(L),TBP/BP(A-1),TBP/BP(A-2),TBP/BP(A-3),M
RTDs: PT100, PT1000, LG-N1000, Ni100, Ni1000, Cu50, Cu100
Voltage inputs: ±2V, ±1V, ±0.5V, ±0.25V, ±125mV
Resistance detection: 0-3000Ω、0-300Ω

• User-Defined Temperature Table
– Apart from the temperature tables of common Thermocouple and RTD, users can define their own temperature reference tables so that even if the sensor type is not in the built-in list, the user can still define it.
• Input Filter
– The built-in filter enhances signal quality to achieve better control.
• Disconnection Detection
– A channel alarm will be generated when input sensor disconnection is detected.

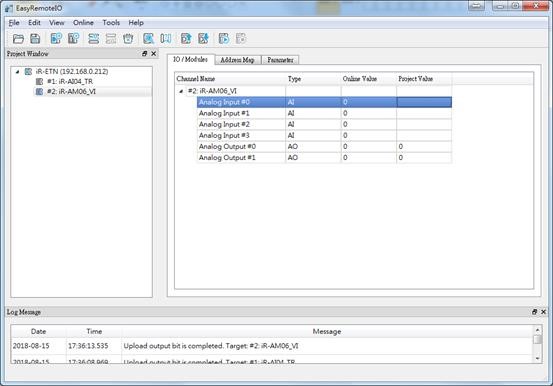

EasyRemoteIO
EasyRemoteIO is PC software that allows users to configure and monitor all iR Series products. It is user-friendly and can help users quickly check the operation of iR Series products.

Contact Lamonde Automation on +44 203 026 2670 or sales@lamonde.com for further information or a quotation.
