cMT Smart HMI + Smart Meter = Smart Solution

header In today’s competitive global economy, soaring energy prices and environmental regulations have driven energy management and efficiency. Metering and monitoring of electricity demand and consumption is core to an energy management system for domestic, commercial and industrial plant.

The combination of cMT3151 and a Smart Meter offers a great solution for an energy demand management system. The accuracy of demand calculation is ensured by two user defined parameters: “Demand Duration” and “Demand Update Frequency”. The acquired data can be used to monitor and manage demand.

The 15” cMT3151 HMI gives clear meter data visualisation as well as clear trending enabling real-time energy consumption and demand to be monitored. The cMT HMI is not only an HMI, it is also a Server which can be view and controlled by other monitoring devices or displays such as via WiFi to iPad/Android tablets or to a cMT-IV5 on the network. via “Easyaccess 2.0” and cMT Viewer, users  anywhere in the world can access the cMT via their Tablet or PC.

Current Supported Meters:
Panasonic KW1M Eco-POWER METER
Panasonic  KW9M Eco-POWER METER

In EasyBuilder Pro:

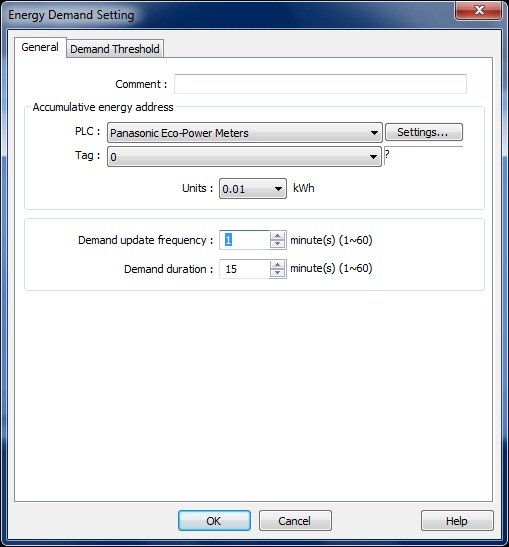

Energy Demand Setting Object:

energy_demand_object

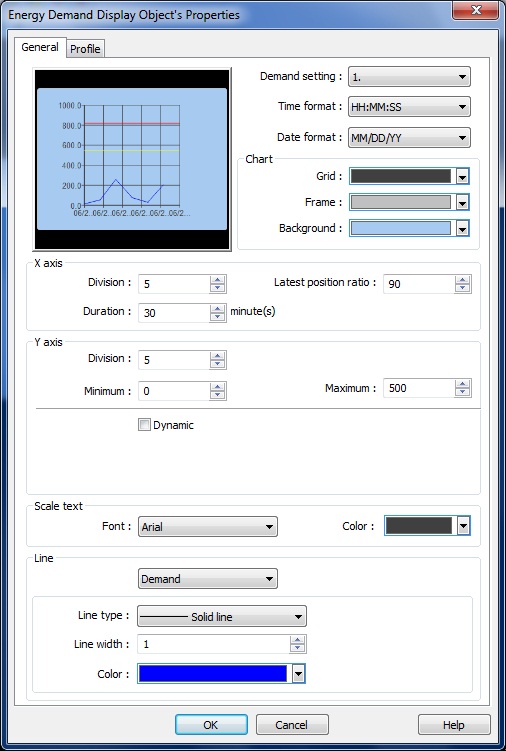

Energy Demand Display Object:

energy_demand_display_object

Find out more about the cMT range here

iPad is a trademark of Apple Inc.
